Ultrapure Water Machine

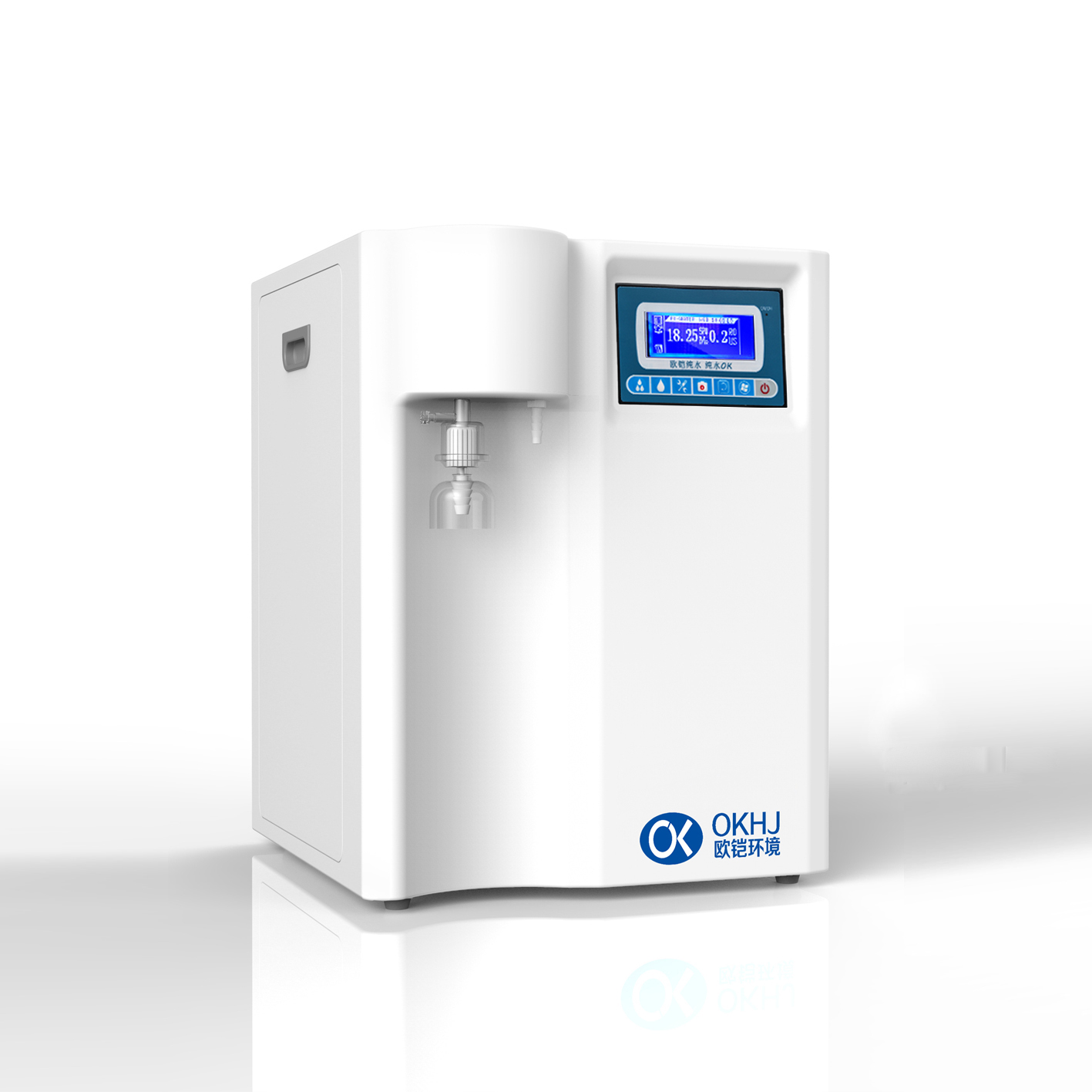

EU-KI-T Series ULTRAPURE WATER PURIFIER



This series are highest cost-effective and most widely used in laboratory.

  Characteristics and Advantages

1.Microcomputer control and automatic unattended design.

2.Touch-key,Multilevel menu operation and man-machine conversation function.

3.Big blue LCD screen, real-time online working state and relevant parameter.

4.Auto alarm for standard-exceeding of water quality and replacement of the failure consumables.

5.Qualitative,quantitative and timing to intake water to meet the demand of different intake water method .

6.Work state for system component. Visible alarm reminds.

7.Self-cleaning will start automatically when machine is power on. Hand clean maintenance.

8.Always online monitoring for the source water of the pure water and ultrapure water to keep the safe of the water quality.

9.Date and time displayed.

10.The time for self-cleaning, alarm value for pure water and ultrapure water can be setting according to your demand.

11.Multiple safety protection function.Auto alarm for lack of water, low water pressure,high pressure, leakage of pipe or water tank fulled.



12. Perfect system self-check, automatic fault diagnosis and UV failure alarm function

13.Automatic timing maintenance, one key to recycle, intake water in demand, reduce emissions, energy conservation and environmental protection

14.Password and limits setting to ensure the safety of equipment and water.

15.

This machine has one key to maintenance to ensure water quality and consumables service cycle in on and off duty











Model and technical parameter:

EU - k1 - based type TJ



Model

EU-k1-10TJ

EU-k1-20TJ

EU-k1-30TJ

EU-k1-40TJ

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -3.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

  Water flow rate

  1-2.0 L/min

Pure water (conductivity)

  0.1~5 us/cm @ 25 ℃

Ultrapure water (resistivity)

18.25 M Ω · cm @ 25 ℃, the TOC < 10 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heavy metal ion < 0.1 PPB;

application area

Application field of atomic absorption, atomic fluorescence, ion chromatography, liquid chromatography, mass spectrometry, plasma spectrum, general chemistry, etc

Power

 100~240 v / 50/60 hz to 50-150 w

Morphology (mm)

 500 x 420 x 500 ABS engineering plastics (width * high deep)







EU - K1 - TF molecular biological type



Model

EU-k1-10TF

EU-k1-20TF

EU-k1-30TF

EU-k1-40TF

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -3.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-2.0 L/min

Pure water (conductivity) of

  0.1~5 us/cm @ 25 ℃

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC < 5 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heat/endotoxin < 0.001 EU/ml, heavy metal ion < 0.1 PPB;

application area

Applications of molecular biology, animal and plant cell culture, biological engineering, medium preparation, medical test, microbial analysis;

Power

 100~240 v / 50/60 hz to 50-150 w

Morphology (mm)

 500 x 420 x 500 ABS engineering plastics (width * high deep)







EU - k1 - TY of ultra-low models



Model

EU-k1-10TY

EU-k1-20TY

EU-k1-30TY

EU-k1-40TY

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -3.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-2.0 L/min

Pure water (conductivity) of

  0.1~5 us/cm @ 25 ℃

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC < 3 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heavy metal ion < 0.1 PPB;

application area

Application field of high performance liquid (HPLC), TOC analysis, gc, plasma mass spectrometry, environmental analysis, high precision instrument experiment;

Power

100~240 v / 50/60 hz to 50-150 w

Morphology (mm)

 500 x 420 x 500 ABS engineering plastics (width * high deep)







EU - k1 - TQ super combination



Model

EU-k1-10TQ

EU-k1-20TQ

EU-k1-30TQ

EU-k1-40TQ

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -3.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-1.5L/min

Pure water (conductivity) of

 0.5 us/cm or less (secondary reverse osmosis conductivity < 5 us/cm @ 25 ℃)

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC: 1-3 PPB, microbial < 1 cfu/ml, heat/endotoxin < 0.001 EU/ml,

Particle impurities (m > 0.22 (including) < 1 / m1, absorbance (254 nm, 1 cm) < 0.001,heavy metal ion < 0.1 PPB;

application area

Application field of PCR, DNA, immune diagnosis, electrophoresis separation, nucleic acid and protein, amino acid analysis, analysis of endotoxin, etc.;

Power

 100~240 v / 50/60 hz to 50-150 w

Morphology (mm)

 500 x 420 x 500 ABS engineering plastics (width * high* deep)

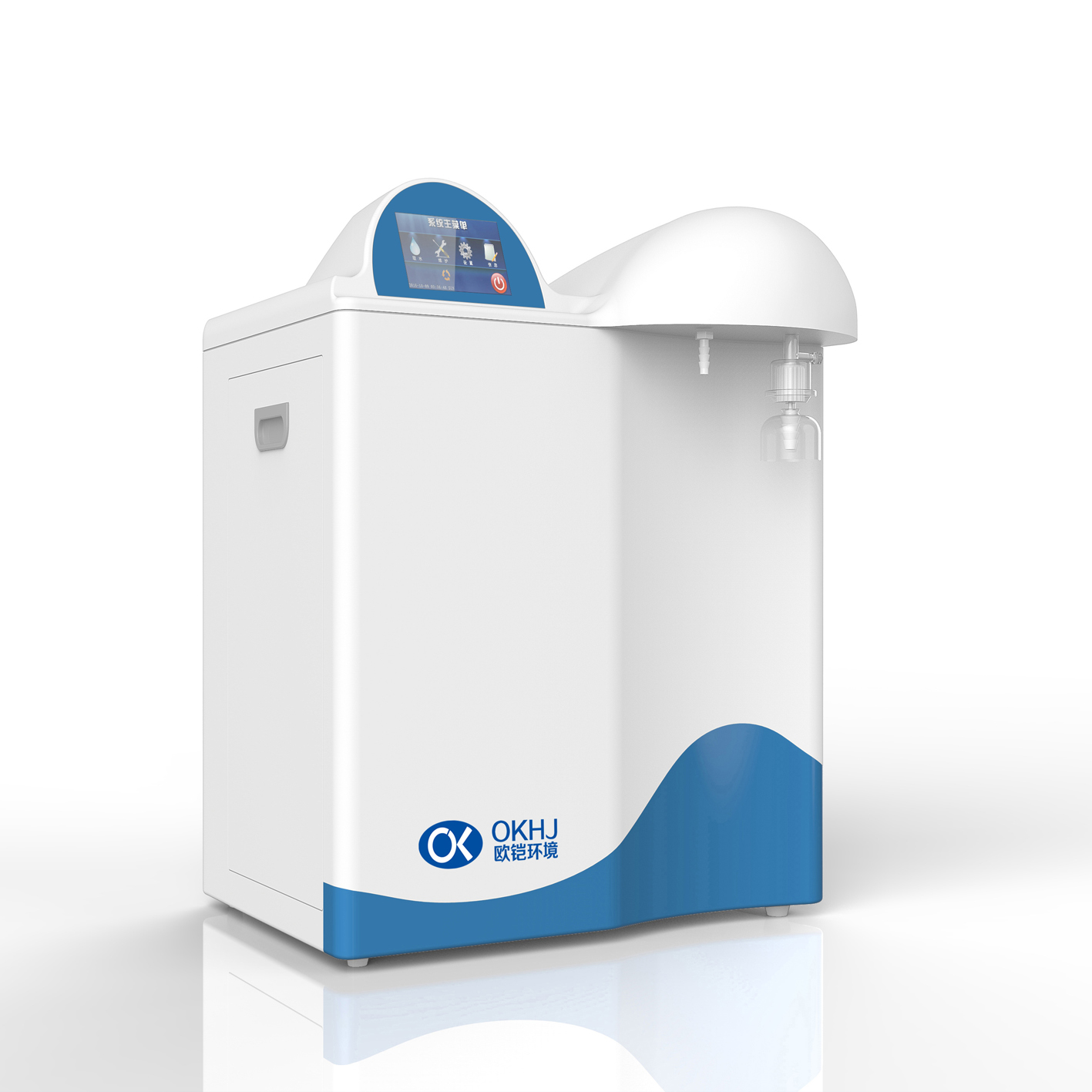

EU - K2 - T series ultrapure water machine

Performance and advantages

1.Color touch screen and display, working state always online, multi-line graphic display running state;

2.Three-channel conductance, resistance online monitoring (source water, RO water, ultrapure water), water quality and safety;

3.Qualitative and quantitative, timing, fetching water, meet the demand of a variety of environmental water way;

4.Equipment has to work a key maintenance, a key function of disinfection,

5.The excess emissions of RO water quality, is greater than the set value automatically emissions;

6.Ultrapure water circulation system independently, ultrapure water resistivity is lower than 18.2 megohm automatic cycle;

7.Activities take nozzle, 3 meters of all-round access freely; (optional)

8.Failure alarm system actual use dynamic display supplies, consumables replacement remind;

9.System has a key function of disinfection, purification and super purification pipeline system is a key disinfection, rinse;

10.Has perfect system self-check function, automatic fault diagnosis system, UV failure alarm, etc.;

11.System has a date in time clock display function;

12.System has password protection function, multi-stage permissions Settings, to ensure the safety of equipment and water;

13.Automatic unattended design, lack of water, low water pressure, water tank filled with water and other automatic power outage protection, pipeline leakage automatic alarm protection at the same time;

14.The TOC detector components immediately combination; (optional).

15.Equipped with a USB Host interface, support the history alarm records and historical records for water data export function (optional).

16.No pollution, no residue type multi-position hydraulic controlled water tank, humanized water storage, energy conservation and environmental protection; (optional)

17.Chassis high-density flame-retardant ABS, bright and beautiful;

Model and technical parameter:

EU - K2 - based type TJ



Model

EU-K2-10TJ

EU-K2-20TJ

EU-K2-30TJ

EU-K2-40TJ

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -5.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

  Water flow rate

  1-2.0 L/min

Pure water (conductivity)

 0.5 us/cm or less (secondary reverse osmosis conductivity < 5 us/cm @ 25 ℃)

Ultrapure water (resistivity)

18.25 M Ω · cm @ 25 ℃, the TOC < 10 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heavy metal ion < 0.1 PPB;

application area

Application field of atomic absorption, atomic fluorescence, ion chromatography, liquid chromatography, mass spectrometry, plasma spectrum, general chemistry, etc

Power

 100~240 v / 50/60 hz to 100-180 w

Morphology (mm)

 560 x 680 x 560 ABS engineering plastics (width * high deep)







EU - K2 - TF molecular biological type



Model

EU-K2-10TF

EU-K2-20TF

EU-K2-30TF

EU-K2-40TF

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -5.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-1.2 L/min

Pure water (conductivity) of

 0.5 us/cm or less (secondary reverse osmosis conductivity < 5 us/cm @ 25 ℃)

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC < 5 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heat/endotoxin < 0.001 EU/ml, heavy metal ion < 0.1 PPB;

application area

Applications of molecular biology, animal and plant cell culture, biological engineering, medium preparation, medical test, microbial analysis;

Power

100~240 v / 50/60 hz to 100-180 w

Morphology (mm)

 560 x 680 x 560 ABS engineering plastics (width * high deep)







EU - K2 - TY of ultra-low models



Model

EU-K2-10TY

EU-K2-20TY

EU-K2-30TY

EU-K2-40TY

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -5.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-2.0 L/min

Pure water (conductivity) of

 0.5 us/cm or less (secondary reverse osmosis conductivity < 5 us/cm @ 25 ℃)

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC < 3 PPB, microbial < 1 cfu/ml, impurity particles (> 0.22 (including M) < 1 / m1, heavy metal ion < 0.1 PPB;

application area

Application field of high performance liquid (HPLC), TOC analysis, gc, plasma mass spectrometry, environmental analysis, high precision instrument experiment;

Power

 100~240 v / 50/60 hz to 100-180 w

Morphology (mm)

 560 x 680 x 560 ABS engineering plastics (width * high deep)







EU - K2 - TQ super combination



Model

EU-K2-10TQ

EU-K2-20TQ

EU-K2-30TQ

EU-K2-40TQ

Water production

10 l/h

20 l/h

30 l/h

40 l/h

Working conditions

  1.0 -5.0 kg/cm2 municipal tap water, the water pressure, temperature, 5-45 ℃, TDS 200 PPM or less

 Water flow rate

  1-1.2 L/min

Pure water (conductivity) of

 0.5 us/cm or less (secondary reverse osmosis conductivity < 5 us/cm @ 25 ℃)

Ultrapure water (resistivity)

Ultrapure water (resistivity) of 18.25 M Ω · cm @ 25 ℃, the TOC: 1-3 PPB, microbial < 1 cfu/ml, heat/endotoxin < 0.001 EU/ml,

Particle impurities (m > 0.22 (including) < 1 / m1, absorbance (254 nm, 1 cm) < 0.001

RNA enzymes < 0.01 ng/ml, DNA enzyme < 4 pg/ml, heavy metal ion < 0.1 PPB;

application area

Application field of PCR, DNA, immune diagnosis, electrophoresis separation, nucleic acid and protein, amino acid analysis, analysis of endotoxin, etc.;

Power

 100~240 v / 50/60 hz to 100-180 w

Morphology (mm)

  560 x 680 x 560 ABS engineering plastics (width * high deep)
